Drum Heaters, silicone rubber laminated, freeze protection, viscosity control, suitable for heat sensitive materials, moisture proof

DRUM HEATERS

Type
RDH

Silicone Rubber Laminated Drum Heaters are electrical resistance heaters in blanket
form. They are designed as a simple and effective method for providing freeze
protection and viscosity control on drum contained materials .

Low Watts Density Electrical Resistance Heater

Exposure Temperature to 150 oC

Rugged & Flexible Heater Element

Even Watt Density - Even Heating

Suitabe for Heat Sensitive Materials

Quick & Simple Installation

Moisture & Chemical Resistant

To suit 210 Litre Drums

Low Cost

kw Loading at 230v

Drum Heaters are totally integrated
heating systems. The RDH Drum Heater has a durable multi-strand copper-nickel heating element insulated with high temperature fibreglass yarn and knitted into tape form. These tapes are laminated between two layers of silicone impregnated fibreglass cloth.

Ideal for Controlling the Viscosity of :
Glucose/ Chocolates/ Oils/ Greases/ Fats/ Paints
/ Varnishes/ Waxe, etc.
.
.

Feature & Specifications

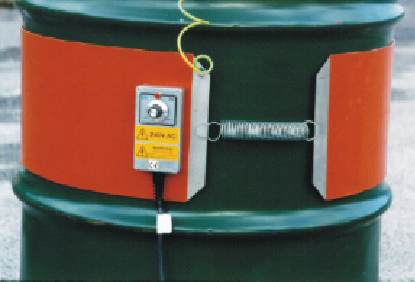

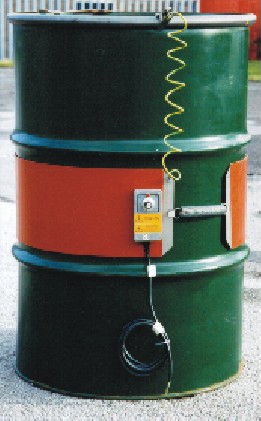

Easy to install	The heater is simply wrapped around the lower part of the drum and the fastener is stretched over the stainless steel closure hook	Dielectric Strength	All drum heaters are designed to a minimum dialectric strength of 2000 volts
Exposure Temperature	Maximum exposure capability of 150 oC and its even watt density provides even heat without hot spots	Moisture Proof	Totally integrated and water tight vulcanized assembly prevents environmental moisture from interacting with the circuitry.
Low Watt Density Heat	RDH Drum Heater provide 1000 Watts for a 210 litre drum dissipated over a 0.2m width and a 1.5 m heated length	Low Cost	RDH Drum Heaters provide low cost, portable, efficient heat.
Rugged Heater Element	Multi-strand fibreglass insulated and knitted element wire provides the most rugged assembly available in a blanket heater
Power Controller

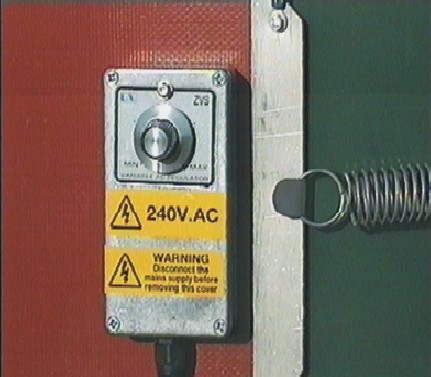

		RDH drum heaters are supplied as standard with an integral single phase Power Controller. This is a Burst Fired a.c.Energy Regulator providing linear proportional control of the load from a few watts to maximum rated power 1000W/ 230V.

Home Page | Top of page

Resistance Technology Limited, 8 Worrall Street, Salford,
MANCHESTER, M5 4TH, ENGLAND, UK.
Tel +44 (0)161 877 7345: Fax +44 (0)161 877 8711


	Data Sheet Ref. RDH/01/97
